Adafruit 2.4 TFT Breakout PCB
Click here to purchase one from the Adafruit shop
PCB files for the Adafruit 2.4" TFT Breakout. Format is EagleCAD schematic and board layout
DESCRIPTION

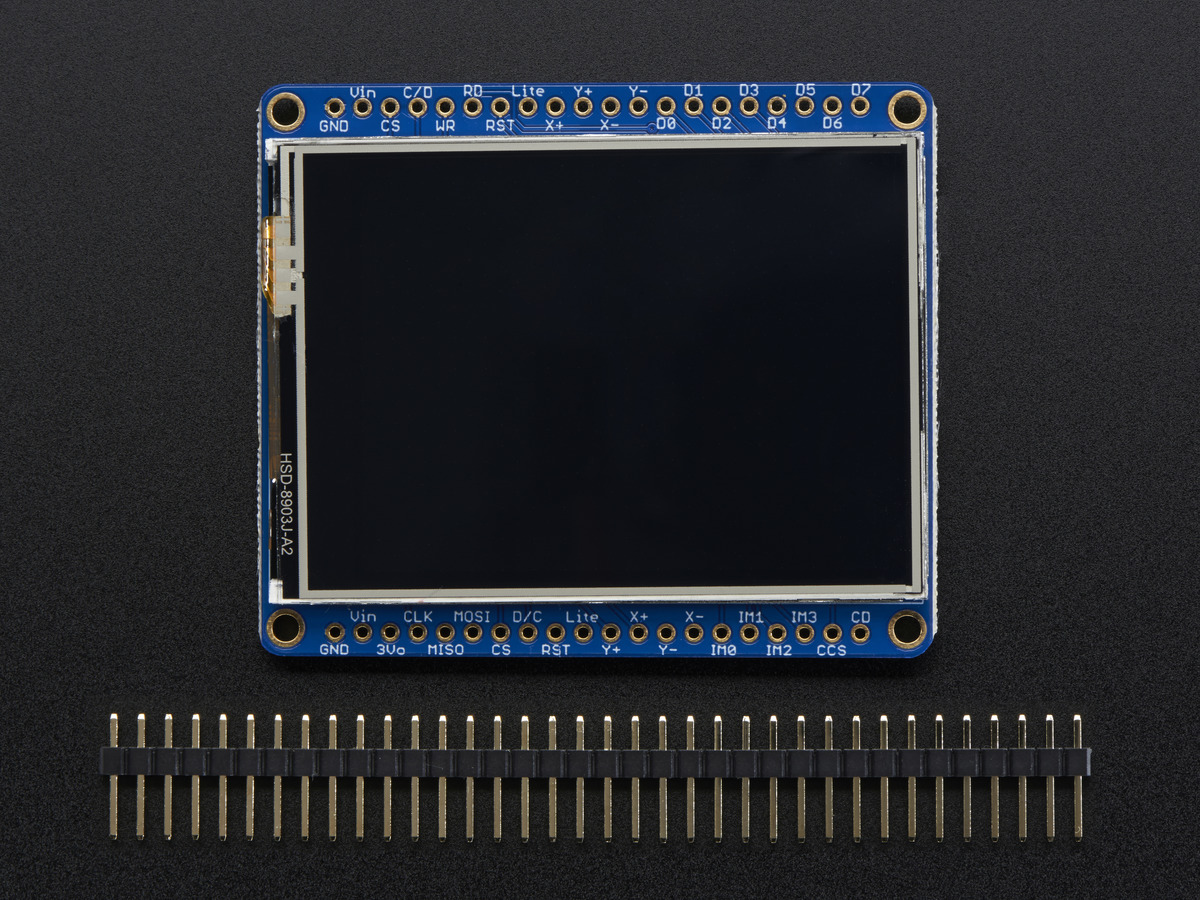

Add some jazz & pizzazz to your project with a color touchscreen LCD. This TFT display is 2.4" diagonal with a bright (4 white-LED) backlight and it's colorful! 240x320 pixels with individual RGB pixel control, this has way more resolution than a black and white 128x64 display.
As a bonus, this display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen.
If you need a larger touchscreen, check out the 2.8" diagonal or 3.5" diagonal TFT breakouts. For a smaller display, see our non-touch 2.2" or 1.8" or 1.44" diagonal TFTs
This display has a controller built into it with RAM buffering, so that almost no work is done by the microcontroller. The display can be used in two modes: 8-bit or SPI. For 8-bit mode, you'll need 8 digital data lines and 4 or 5 digital control lines to read and write to the display (12 lines total). SPI mode requires only 5 pins total (SPI data in, data out, clock, select, and d/c) but is slower than 8-bit mode.
In addition, 4 pins are required for the touch screen (2 digital, 2 analog) or you can purchase and use our resistive touchscreen controller (not included) to use I2C or SPI.
License
Adafruit invests time and resources providing this open source design, please support Adafruit and open-source hardware by purchasing products from Adafruit.com!
Creative Commons Attribution, Share-Alike license, check license.txt for more information All text above must be included in any redistribution - See license.txt for more information.
