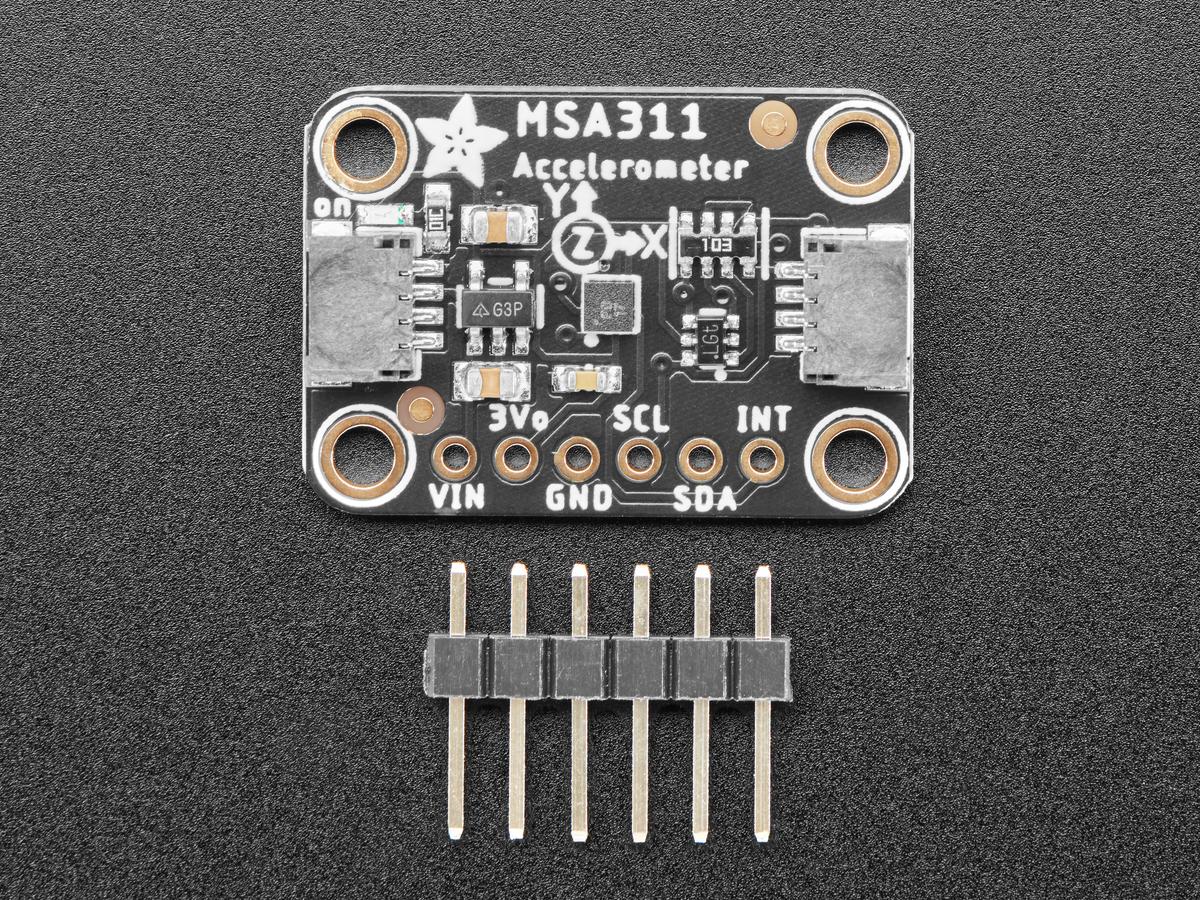

Adafruit MSA311 Triple Axis Accelerometer PCB


Click here to purchase one from the Adafruit shop

PCB files for the Adafruit MSA311 Triple Axis Accelerometer.

Format is EagleCAD schematic and board layout

Description

The MSA311 is a super small and low-cost triple-axis accelerometer. It's inexpensive, but has just about every 'extra' you'd want in an accelerometer:

  • Three-axis sensing, 14-bit resolution
  • ±2g/±4g/±8g/±16g selectable scaling
  • I2C interface on fixed I2C address 0x62
  • Interrupt output
  • Multiple data rate options 1 Hz to 500 Hz
  • As low as 2uA current draw in low power mode (just the chip itself, not including any supporting circuitry)
  • Tap, Double-tap, orientation & freefall detection

The MSA311 is very similar to the MSA301, but is not a drop-in replacement. The I2C address has changed from 0x26 to 0x62!

License

Adafruit invests time and resources providing this open source design, please support Adafruit and open-source hardware by purchasing products from Adafruit!

Designed by Limor Fried/Ladyada for Adafruit Industries.

Creative Commons Attribution/Share-Alike, all text above must be included in any redistribution. See license.txt for additional details.
